Common Table Expressions in MySQL: When and How to Use Them

A guide to common table expressions, using them in the MySQL database, and when you should use them

What are CTEs?

CTE is also known as the WITH clause or sub-query factoring. It is a named temporary result set that is used to manipulate the complex sub-query data.

In simple terms, the code can be made reusable if the already calculated values are stored in a temporary space, eliminating the need to calculate them again.

It can be used with SELECT, INSERT, UPDATE, DELETE, etc. Also, a CTE can reference other CTEs that are part of the same WITH clause, but those CTEs should be defined earlier.

MySQL CTE syntax

The structure of CTE includes:

name: name of the CTE to store the temporary result
column list: column to store the values in the CTE
query to define the CTE; the result of this query is stored in the CTE.

CTE is always defined with the WITH keyword, followed by the CTE name and column name. Once the CTE has been declared, it can be referenced to make use of the results. The execution scope of CTE exists within the statement in which it is used.

WITH cte_name (column_list) AS (
    query
)

SELECT * FROM cte_name;

The number of columns in the CTE arguments must be equal to the number of columns in the query. The query columns that define the CTE will be used if we haven't declared the columns in the CTE parameters.

MySQL CTE example

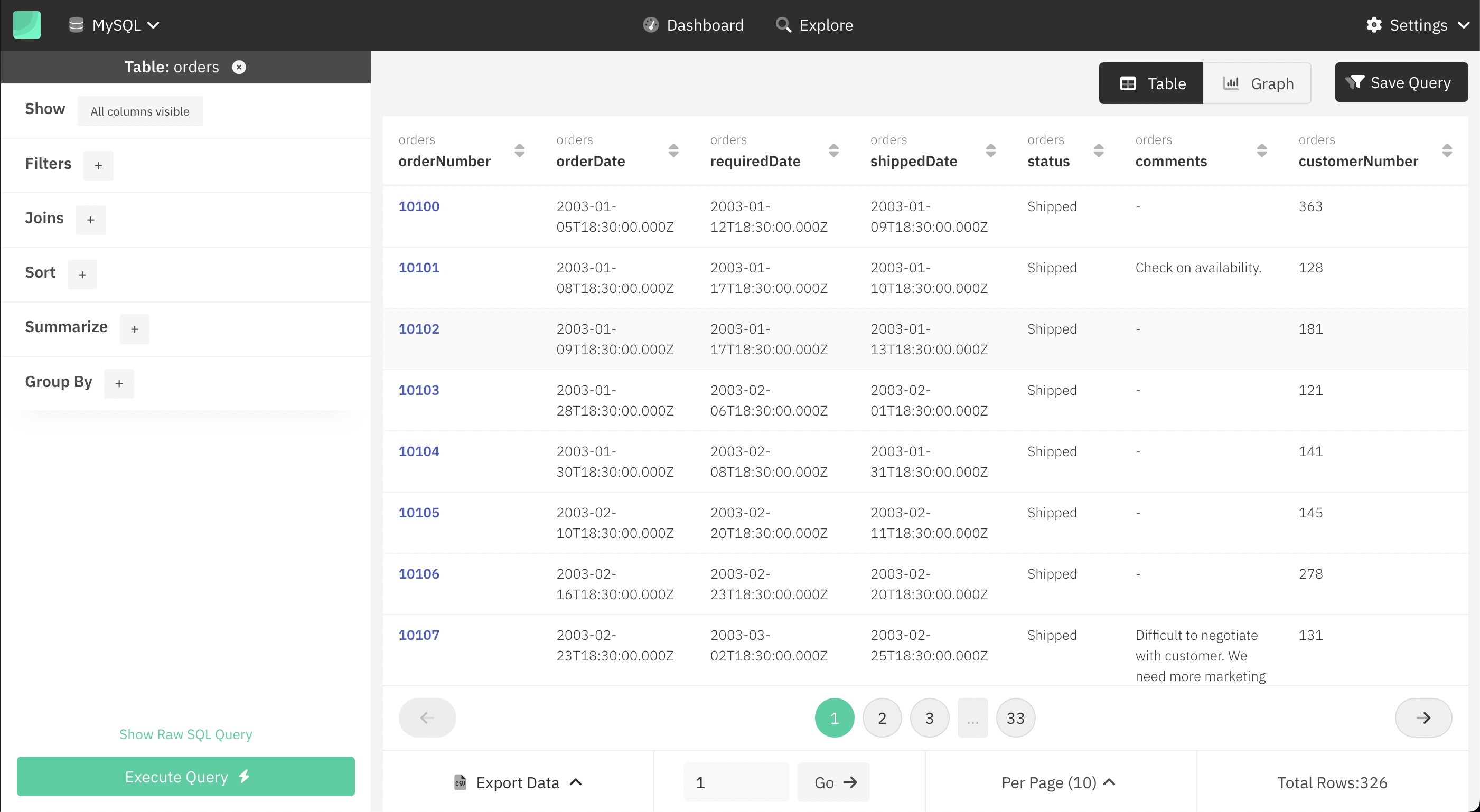

Let us assume ABC Company sells goods to its customers online. Here is the orders table representing their weekly sales.

Orders Table

We have the order and the orderDetails table, with the order having basic information about the order and the orderDetails having a price breakdown of the order. We want to get the order's total order value. To write a query for this, we need to calculate the total order value and then join the two tables.

Steps :

Create a CTE - orderValue from orderDetails table
Store average in the column orderNumber, orderTotalValue
Join CTE with the orders table and show the orders along with orderTotalValue

WITH
  `orderValue` (`orderNumber`, `orderTotalValue`) AS (
    SELECT
      `orderNumber`,
      SUM(
        `orderdetails`.`priceEach`*`orderdetails`.`quantityOrdered`
      ) AS `orderTotalValue`
    FROM
      `orderdetails`
    GROUP BY
      `orderNumber`
  )
SELECT
  `orders`.`orderNumber`,
  `orderTotalValue`,
  `orderDate`,
  `status`
FROM
  orders
  INNER JOIN `orderValue` ON `orderValue`.`orderNumber`=`orders`.`orderNumber`;

Output:

Entries of those customers who ordered more than the average order price.

MySQl CTEs

MySQL CTE use case

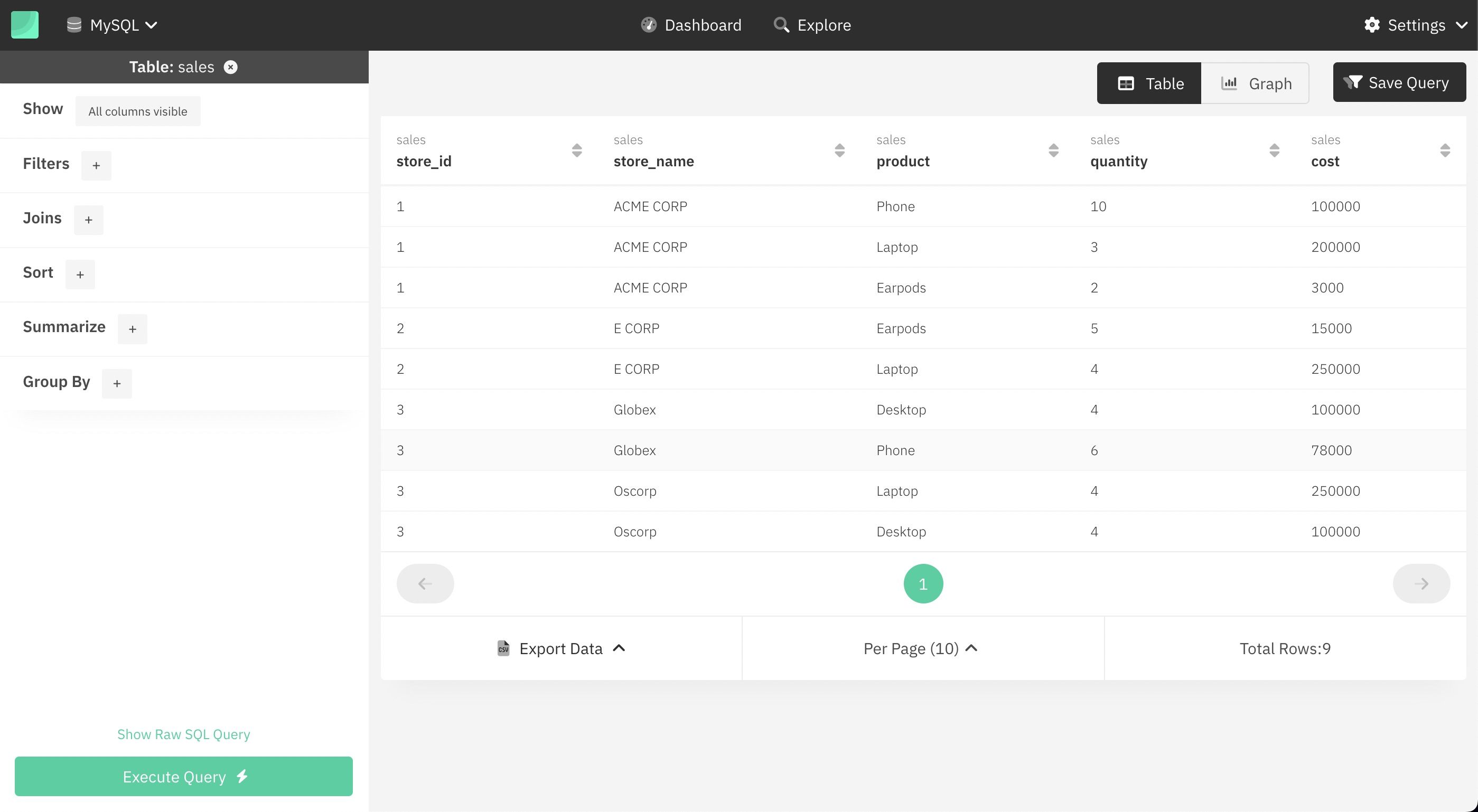

XYZ company has multiple electronics stores selling laptops, phones, desktops, etc. online. Here is the sales table representing the weekly sales of all of the stores under XYZ.

Sales Table

We are supposed to show the entries of those stores having sales higher than the average sales for all the stores.

Steps :

Calculate the total sales of each store.
Calculate the average sales for all the stores.
Show entries for all the stores whose total sales are greater than the average sales.

Without using MySQL CTE

Find the total sales of each store.

SELECT s.store_id, sum(s.cost) AS total_sales_per_store
FROM sales s
GROUP BY s.store_id;

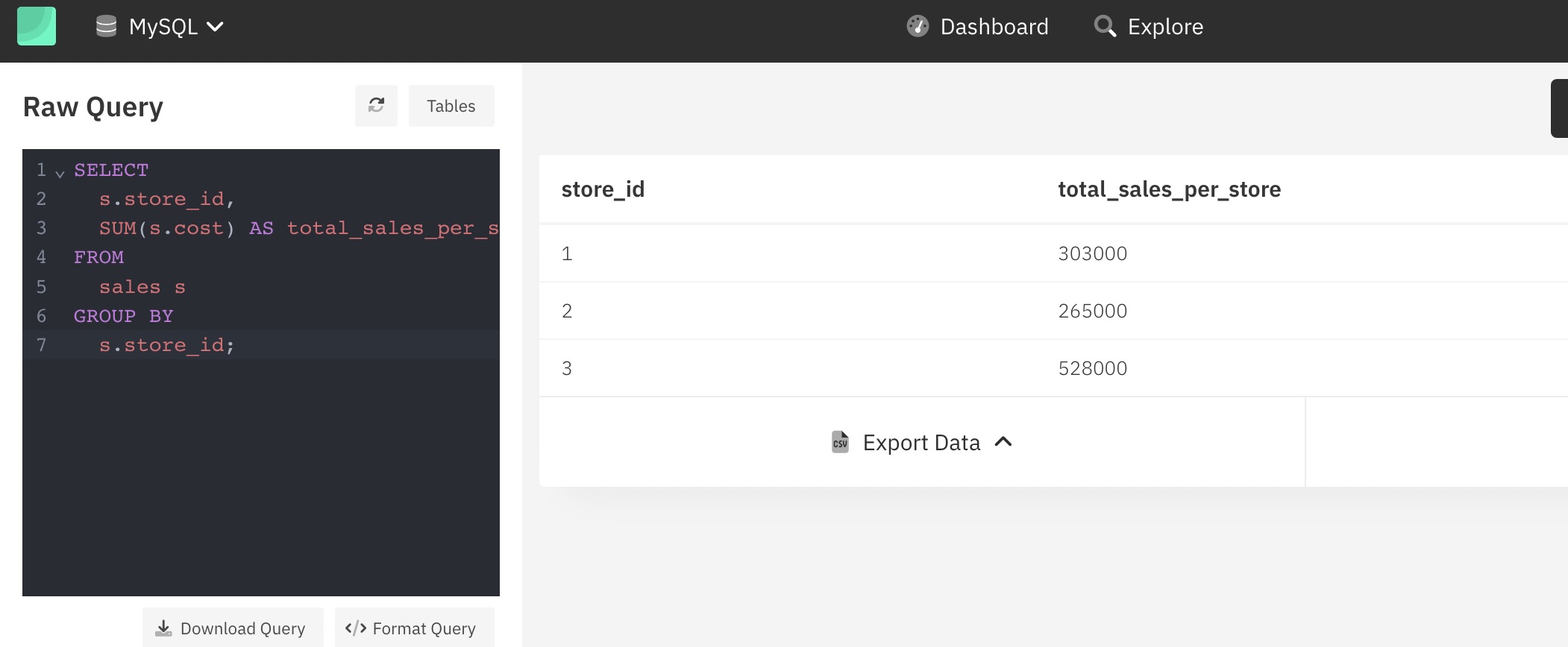

Total sales of each store:

Total sales of each Store

Find average sales with respect to all stores.

SELECT (avg(total_sales_per_store)) avg_sale_for_all_store
FROM (SELECT s.store_id, sum(s.cost) AS total_sales_per_store
	FROM sales s
	GROUP BY s.store_id) x

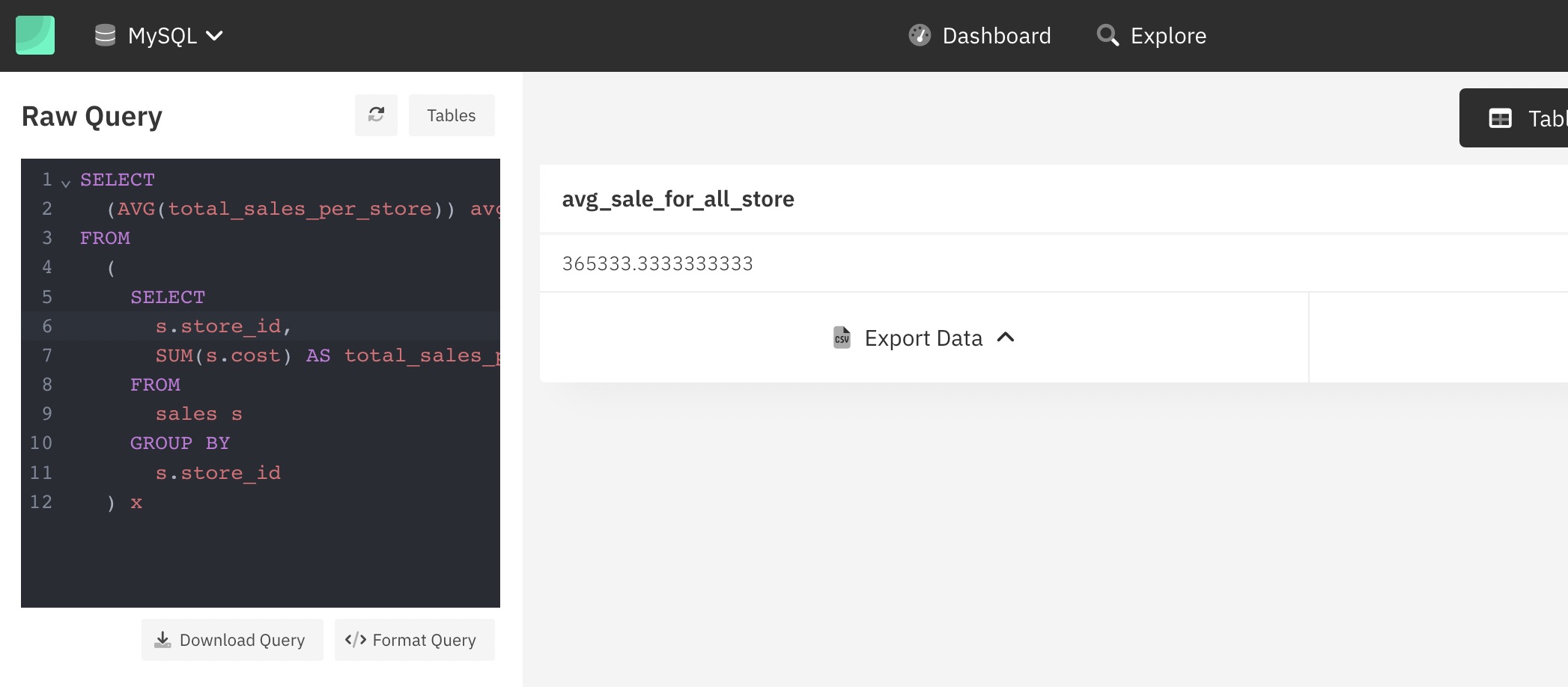

Average sales of each store

Display data for all stores whose sales were better than the average sales across all stores.

SELECT *
-- Total sales
FROM   (SELECT s.store_id, sum(s.cost) as total_sales_per_store
				FROM sales s
				GROUP BY s.store_id
	   ) total_sales

-- avg sales
JOIN   (SELECT avg(total_sales_per_store) avg_sale_for_all_store
				FROM (SELECT s.store_id, sum(s.cost) AS total_sales_per_store
		  	  		FROM sales s
			  			GROUP BY s.store_id) x
	   ) avg_sales

-- condition
ON total_sales.total_sales_per_store > avg_sales.avg_sale_for_all_store;

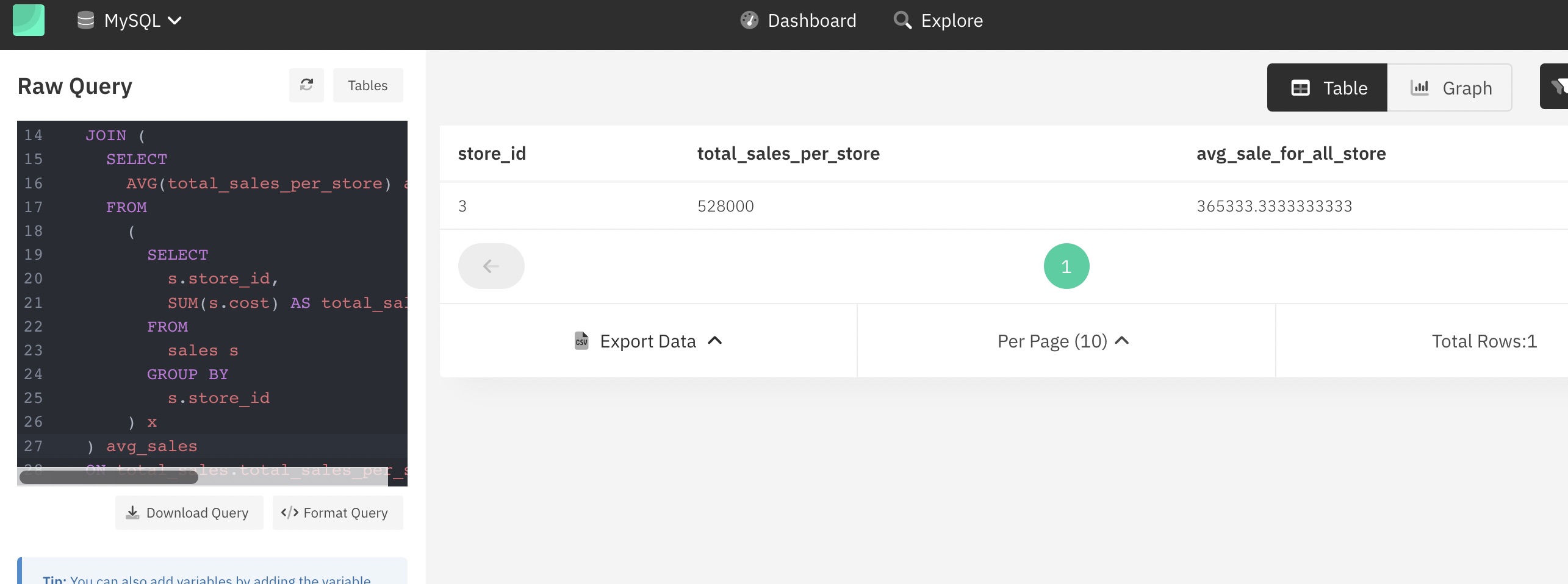

Output:

Sales which were better than the average sales across all stores

Using MySQL CTE

As it gets difficult to read this code, we can use Common Table Expressions to store the results of already calculated parameters. The total sales have been calculated twice, which can be avoided.

We can use the CTEs to temporarily store the total sales in the total_sales CTE and create total_sales_per_store column.

Similarly, average sales in the avg_sales CTE and avg_sale_for_all_store columns.

After creating CTE, we can join avg_sales with total_sales and display all the entries that satisfy the condition of total_sales_per_store > avg_sale_for_all_store

WITH total_sales AS
		(SELECT s.store_id, sum(s.cost) AS total_sales_per_store
		FROM sales s
		GROUP BY s.store_id),    -- Total sales

	avg_sales as
		(SELECT (avg(total_sales_per_store)) avg_sale_for_all_store
		FROM total_sales)       -- average sales

SELECT *
FROM   total_sales
JOIN   avg_sales
ON total_sales.total_sales_per_store > avg_sales.avg_sale_for_all_store;

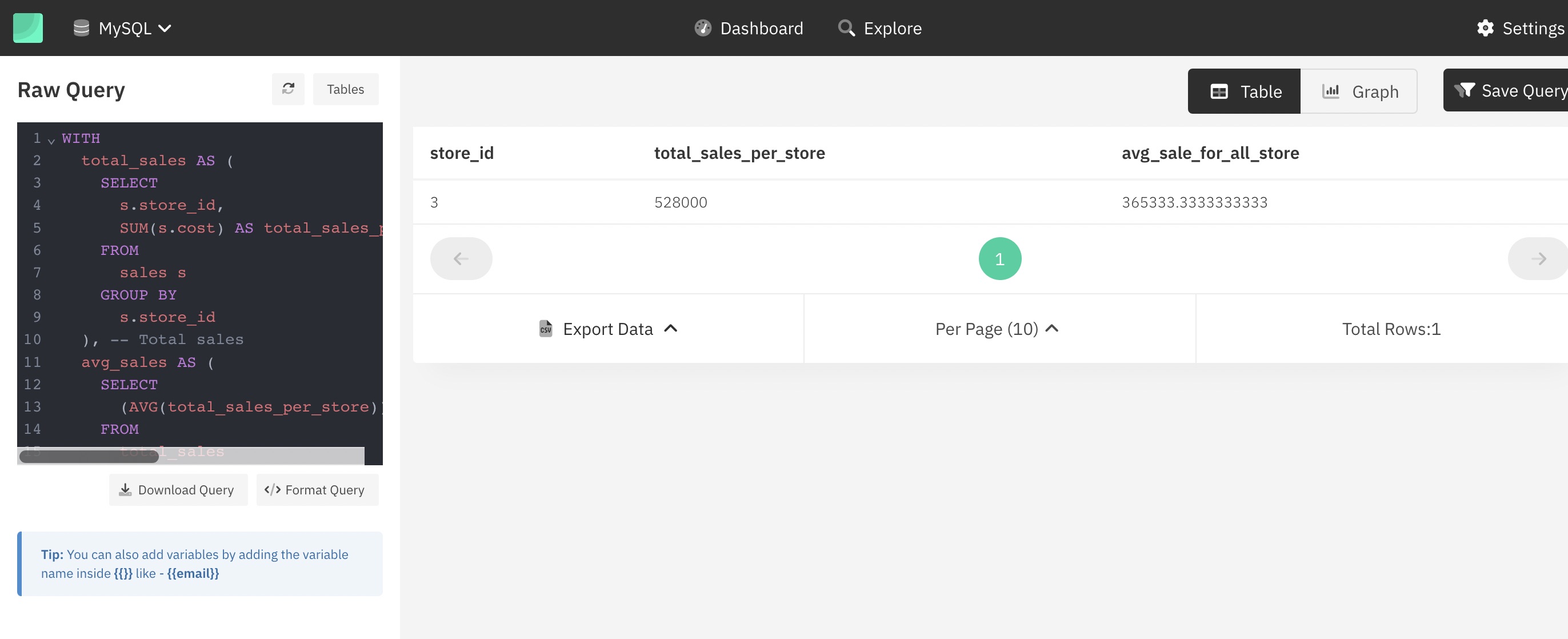

Output:

MySQL CTEs

MySQL Recursive CTE Syntax

When a subquery in a common table expression (CTE) refers to the CTE name itself, the CTE is said to be recursive.

The recursive CTEs are used for series generation and traversal of hierarchical or tree-structured data.

The recursive CTE syntax consists of three elements:

Initial query (anchor): Base result set of the CTE structure. It is a non-recursive statement.
Recursive query: Query that references the CTE name; hence, it is called a recursive member. The recursive member is joined with the anchor member by a UNION or UNION DISTINCToperator.
Termination condition: ensures the recursion stops when the recursive member returns no row.

WITH RECURSIVE ctename AS (
    initial_query  -- anchor
    UNION ALL
    recursive_query -- recursive member that references the CTE name
)
SELECT * FROM ctename;

Steps to execute a recursive CTE

The anchor/initial query is executed first to store the base case’s result. This base result is used for the next iterations.
The recursive query is then executed until the termination condition.
The anchor member and the result from the recursive query are combined using the UNION ALL operator.

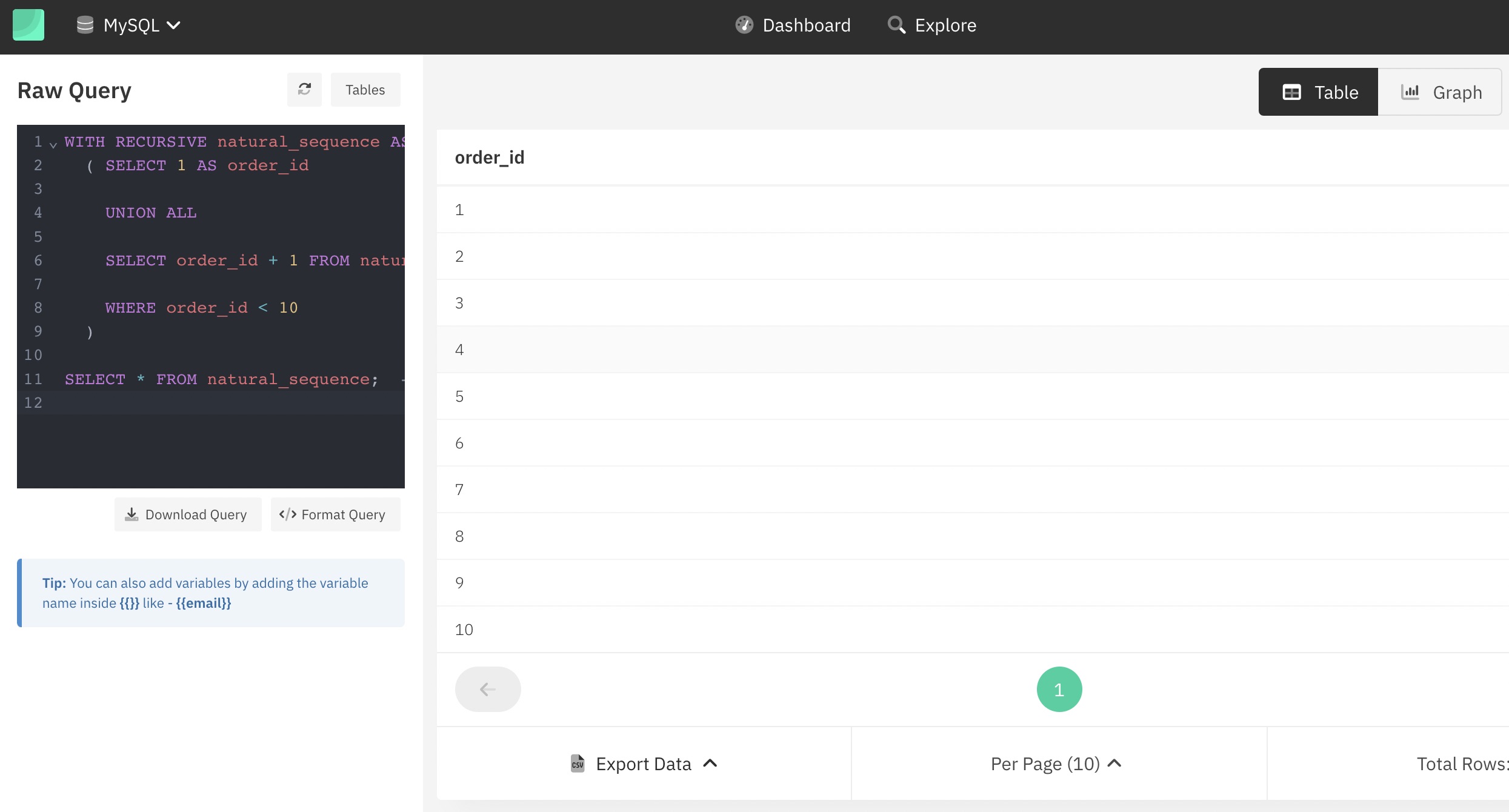

MySQL recursive CTE example

Consider a case to generate 10 order IDs starting from 1. Look at it as a while loop that keeps on executing until the termination condition.

WITH RECURSIVE natural_sequence AS
  ( SELECT 1 AS order_id                    -- anchor member: our sequence starts from 1
		UNION ALL
    SELECT order_id + 1 FROM natural_sequence    -- recursive member: reference to itself
		WHERE order_id < 10                          -- stop condition
  )

SELECT * FROM natural_sequence;  -- executes CTE

Explanation

The non-recursive part gets executed.
```

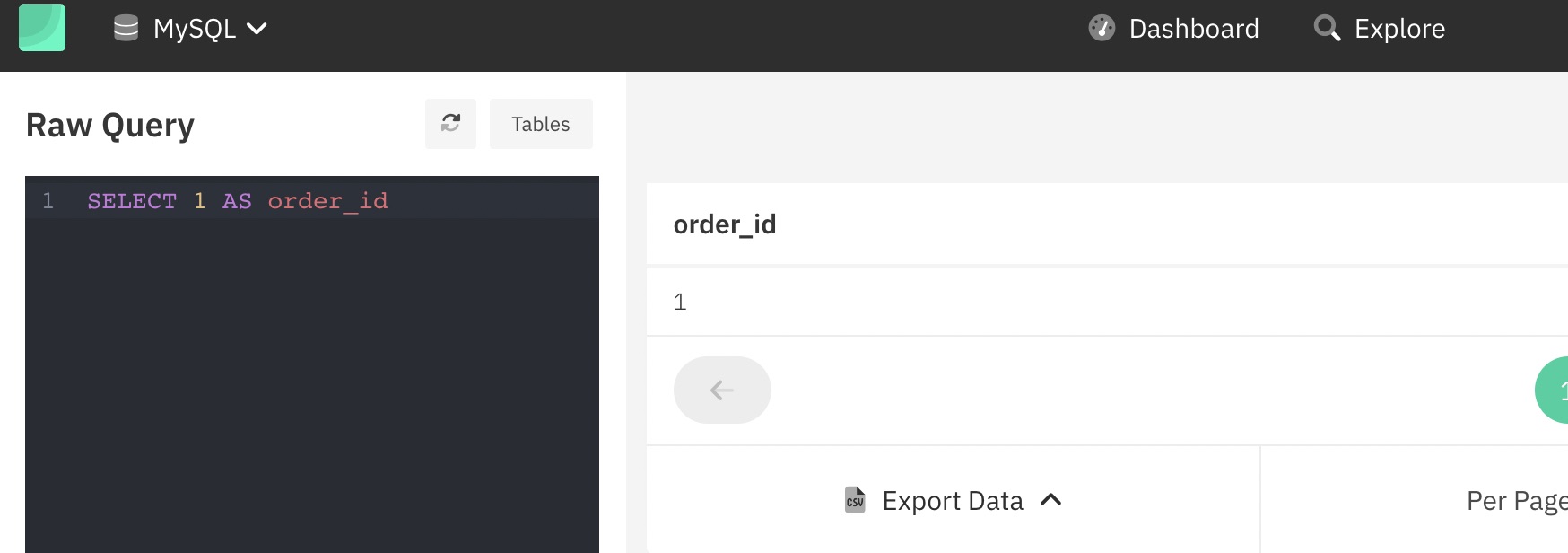

SELECT 1 AS order_id
```
It produces initial rows, which consist of one column named order_id and a single row with entry 1.
The recursive part gets executed. It will add rows until order_id < 10.
When the order_id becomes 10, the condition becomes false, the recursion is terminated, and a series of 10 order ids are generated.

MySQL recursive CTE use cases

Case 1: Series Generation

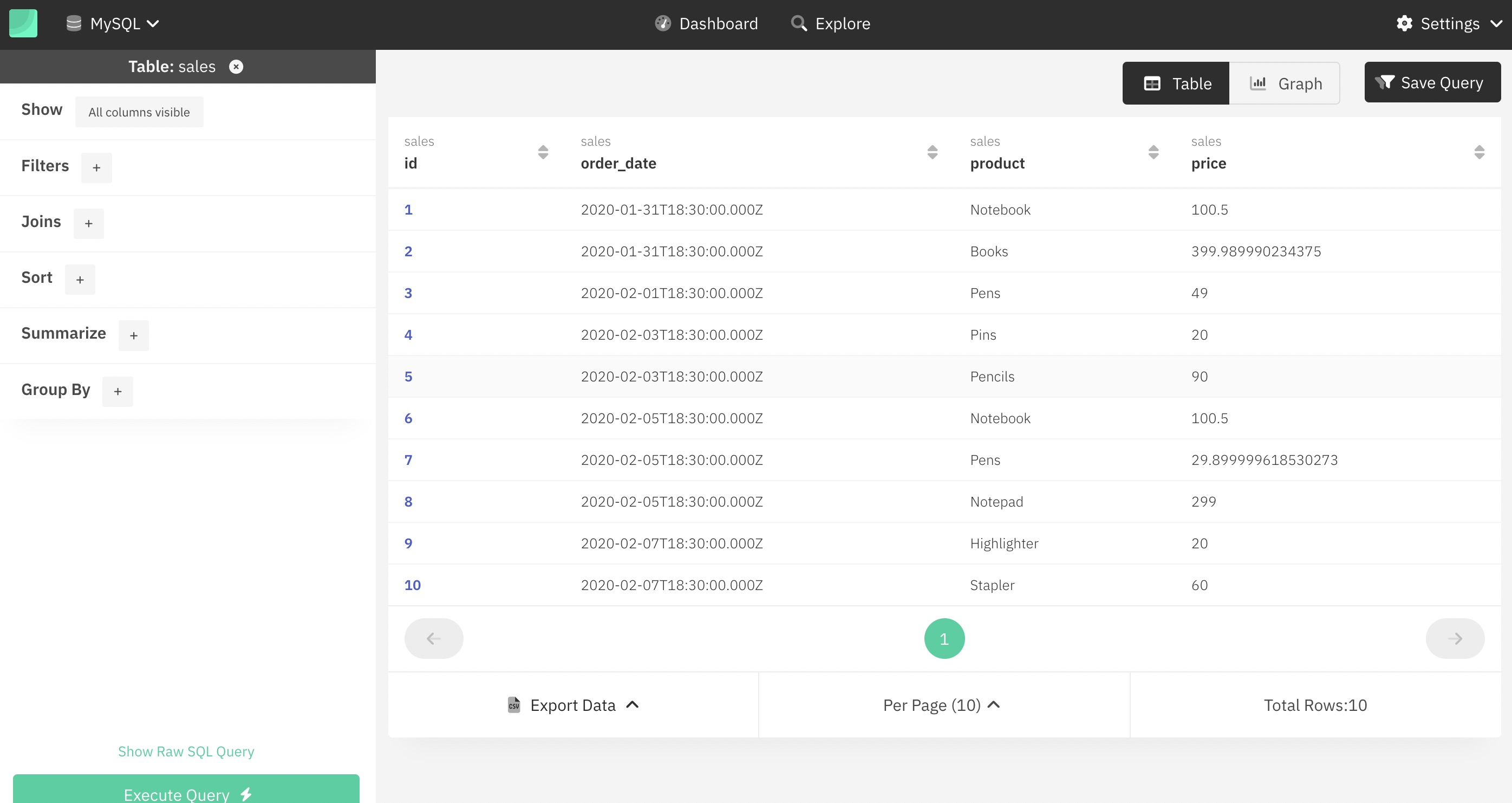

Consider ABC shop selling stationery items online. Here is the sales table representing the weekly sales of ABC. We are supposed to show the total sales for each day according to the dates. Lets first show total sales per day using SUM and the GROUP BY operator
```
SELECT order_date,SUM(price) AS sales
FROM sales
GROUP BY order_date;
```

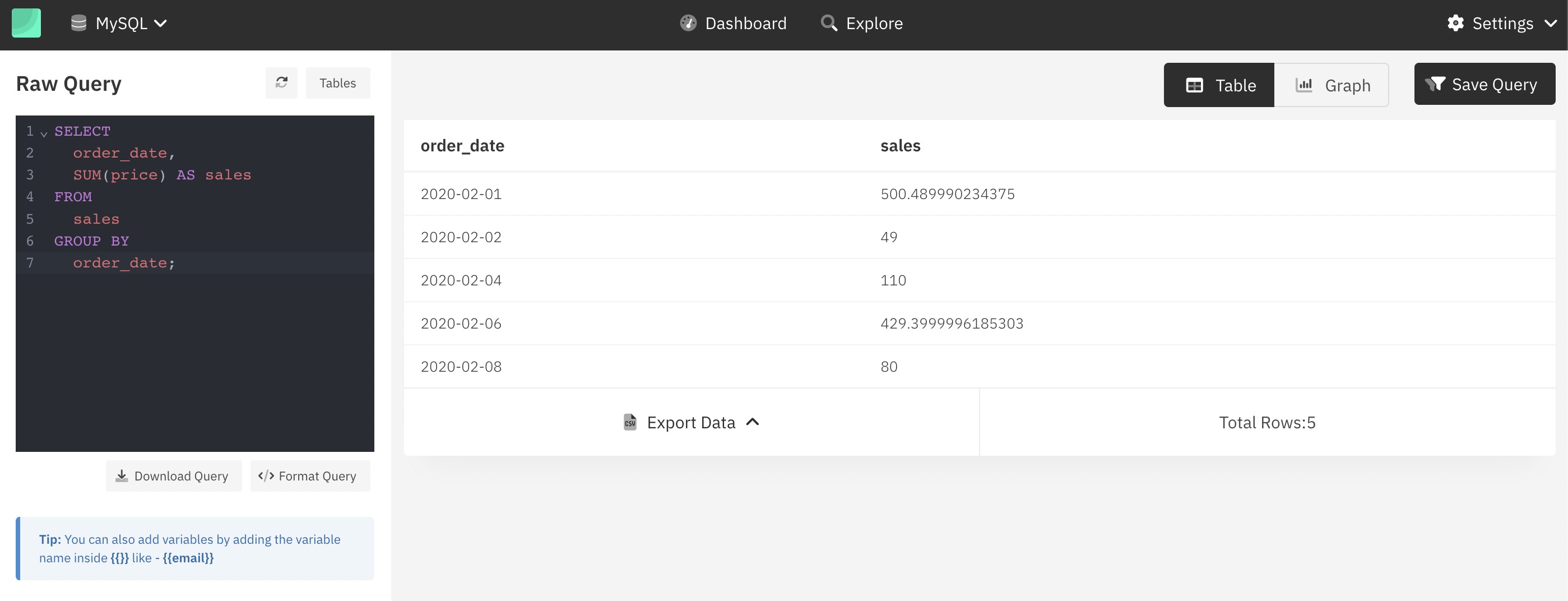

Output: The manager of ABC wants to have a look at the sales of the first week of February i.e. from 1st - 7th of February. Also whichever day has 0 sales, 0.00 should be allocated to that day. This kind of weekly sales data can be used to create charts/graphs to understand the sales of the shop. We can use recursive CTE here to generate dates from 1st Aug to 7th Aug and later merge them with the sales table. We are using the COALESCE operator to allocate SUM of prices to days having sales and 0 to the ones having no sales. Read more about COALESCE here
```
WITH RECURSIVE dates(date) AS (
   SELECT '2020-02-01'  -- anchor
   UNION ALL
   SELECT date + INTERVAL 1 DAY  -- recursive query
   FROM dates
   WHERE date < '2020-02-07' )  --termination condition

SELECT dates.date, COALESCE(SUM(price), 0) sales
FROM dates LEFT JOIN sales ON dates.date = sales.order_date
GROUP BY dates.date;
```

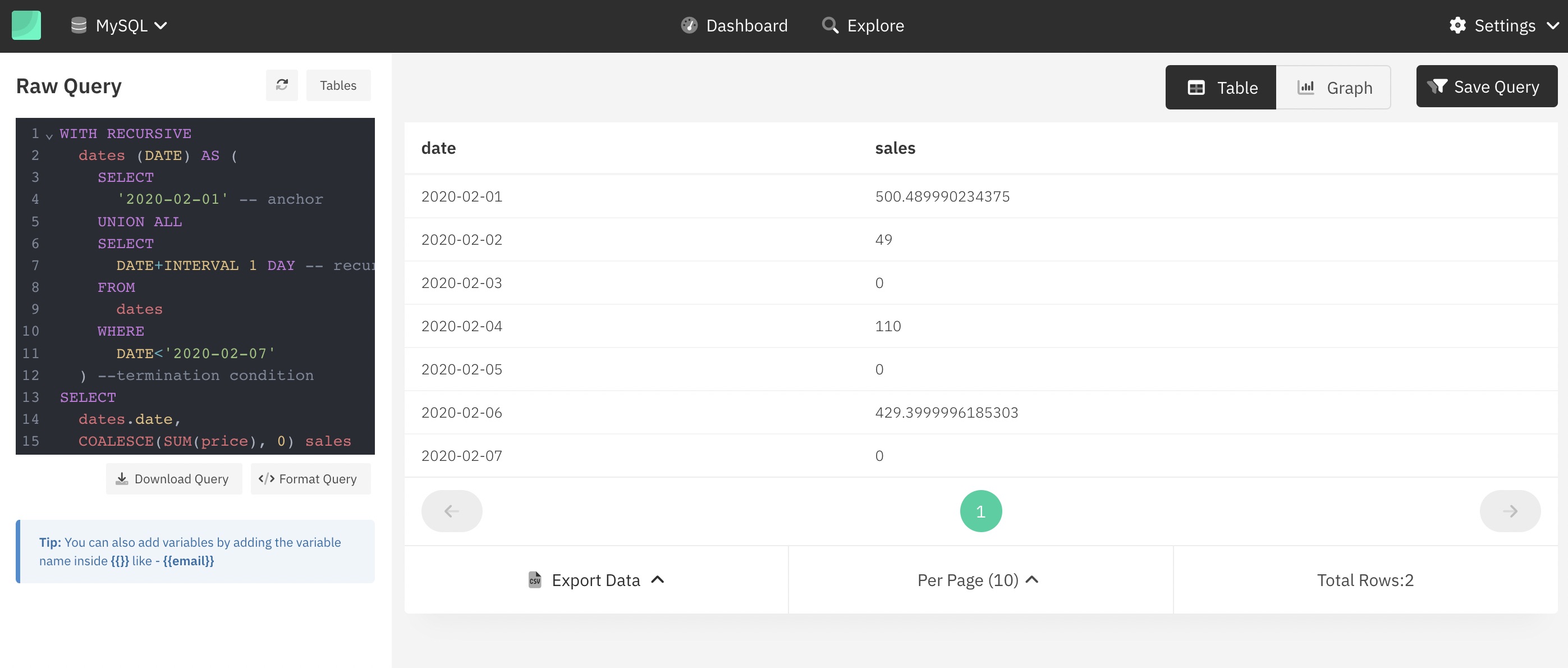

Output: Representing the weekly sales of the ABC shop

Case 2 - Hierarchical Data Traversal

Recursive CTEs can be used to play around with hierarchal data like the understanding hierarchy of employees in a company or a family tree, etc. Such hierarchical structures can also inform strategies for employee rewards and recognition, as they help identify key contributors and streamline acknowledgment processes in complex organizations.

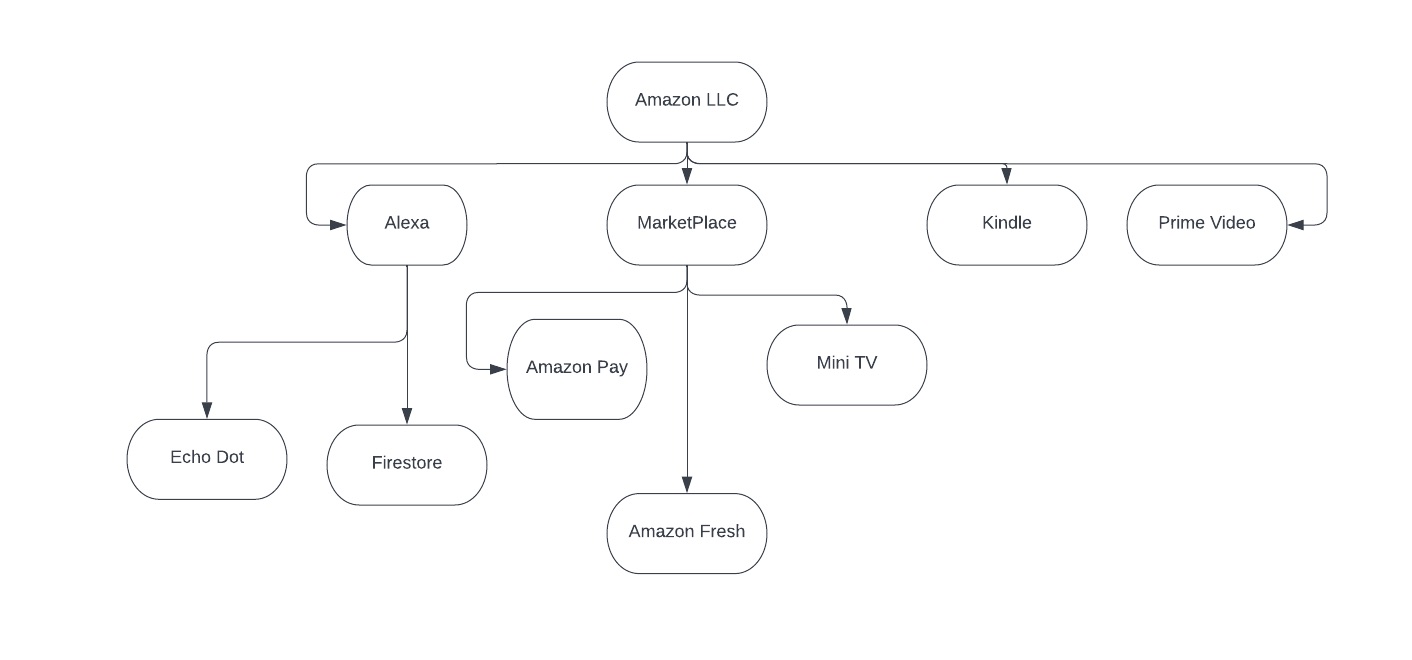

Consider Amazon LLC which has multiple products like Amazon Prime, Amazon Market Place, Amazon Alexa, Amazon Echo Dot, etc. These products have sub-products like Amazon Echo Dot comes under Alexa or Amazon Fresh and comes under the Amazon Marketplace. Below is the organizational structure of amazon The amazon table represents the same where level indicating under which category the category falls. We are supposed to show which category falls under which organization. As Amazon fresh comes under the marketplace, we are supposed to show ‘Amazon > Amazon Market place > Amazon Fresh to show the hierarchy. Let's create a recursive CTE hierarchy with columns id, name, path, and level
```
WITH RECURSIVE hierarchy(id, name, path, level) AS (
	SELECT id, company_name, CAST(company_name AS CHAR(100)), 1
	FROM amazon
	WHERE level IS NULL
	UNION ALL
	SELECT am.id, am.company_name, CONCAT(h.path,' -> ',am.company_name), h.level+1
	FROM hierarchy h JOIN amazon am ON h.id=am.level
)

SELECT * FROM hierarchy ORDER BY level;
```

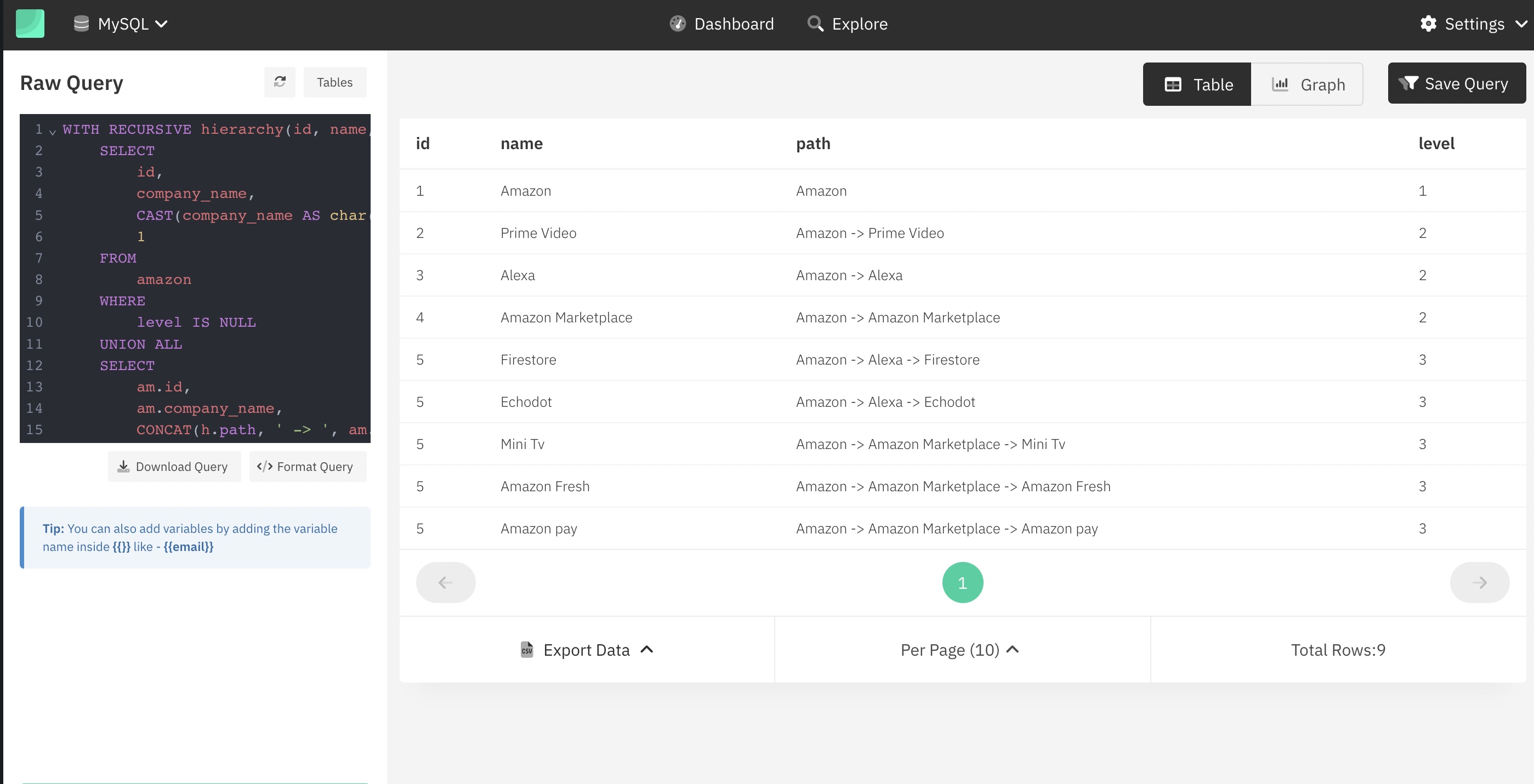

Output: Representing the hierarchy of organization in Amazon LLC.

Limitations of Recursive CTE

Aggregate methods like SUM(), GROUP BY, ORDER BY, DISTINCT, and Window functions shouldn't be used by the recursive CTE. For CTE that is not recursive, this is not true. The CTE must only be mentioned once in the recursive SELECT part's FROMclause and never in a subquery.

Conclusion
- By utilizing temporary tables and the WITH clause, MySQL CTE can be used to prevent the need for complex queries.
- It can also be used to chain CTEs in order to make the query simpler.
- The CTE allows us to use it in place of the VIEW idea. It can also be used to quickly build recursive queries.
- Recursive CTEs can be used to create series and navigate through data that is organized in a tree or hierarchy.
